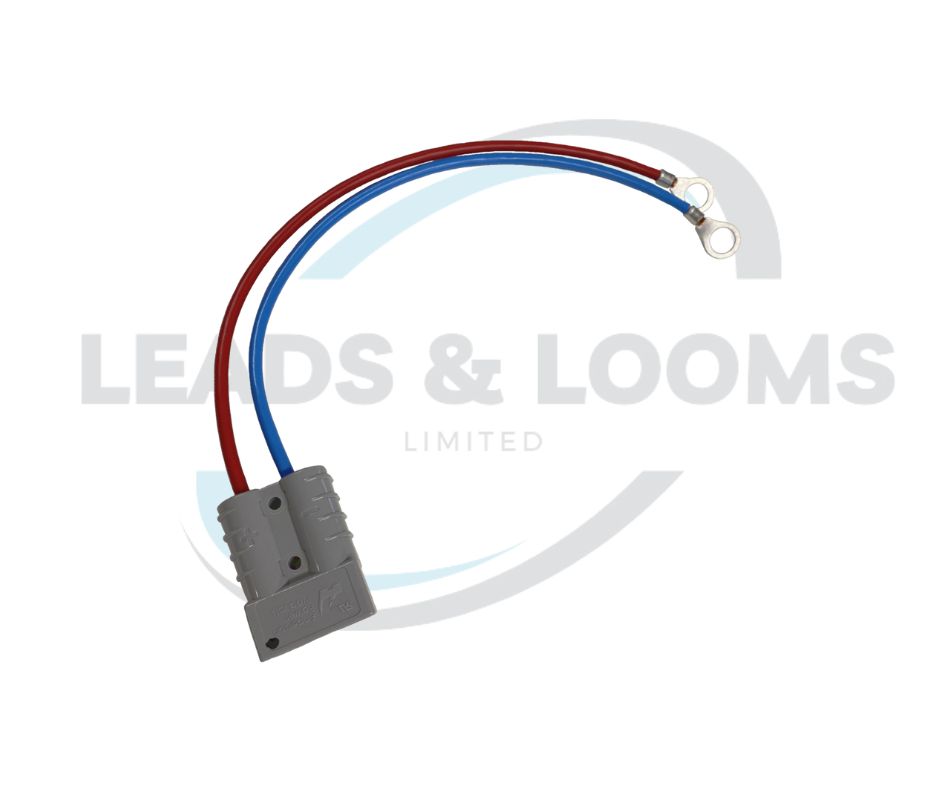

Anderson SB50 with Tails & Ring Terminals
Our Anderson SB50 with Tails & Ring Terminals is manufactured using a genuine Grey Anderson SB50 connector fitted at one end and M10 (10mm) ring terminals fitted at the other.
Designed for quick and reliable battery connections, this cable assembly is suitable for a wide range of 6V, 12V, 24V and 48V applications and is commonly used across battery-powered vehicles, chargers, solar systems and traffic management equipment.
Genuine Grey Anderson SB50 Connector
Each assembly is fitted with a genuine Grey Anderson SB50 connector, designed to plug directly into another compatible Grey SB50 connector.
The Anderson connection provides a simple way to connect and disconnect battery-powered equipment without repeatedly removing fixed cable connections.
M10 Ring Terminals
The opposite end of the cable assembly is fitted with M10 (10mm) ring terminals for connection to suitable battery terminals, electrical equipment or other compatible connection points.
This combination of Anderson connector and ring terminals makes the lead suitable for applications requiring a secure fixed connection at one end and a quick-disconnect connection at the other.
Anderson SB50 Cable Specifications
Key product specifications include:
- Connector: Genuine Grey Anderson SB50
- Terminal size: M10 / 10mm ring terminals
- Cable size: 6mm² / 10 AWG
- Current capacity: approximately 50A–60A
- Cable length: approximately 300mm
- Voltage applications: 6V, 12V, 24V and 48V
- Connector colour: Grey
Suitable for Battery & Automotive Applications
The Anderson SB50 tail assembly is widely used across a range of battery and electrical applications, including:
- Golf buggies
- Battery-powered pedal cars
- Battery chargers
- Battery systems
- Solar applications
- Traffic management systems
- Other applications requiring a quick battery connection
Its compact design makes it a straightforward option where a reliable Anderson SB50 connection is required.
Anderson SB50 Connector Compatibility
It is important to check the colour and size of your existing Anderson connector before ordering.
Anderson connectors of different colours or sizes are not interchangeable.
Please note:
- Grey SB50 connectors will only connect with another Grey SB50 connector
- Red SB50 connectors will only connect with another Red SB50 connector
- SB50 connectors will NOT connect with SB175 connectors
- SB175 connectors will NOT connect with SB50 connectors
- A Red connector will NOT connect with a Grey connector
Please check your existing connector carefully before placing your order.
One-Off Orders & Bulk Supply
We can supply this Anderson SB50 with tails and ring terminals as an individual one-off order or as part of scheduled bulk quantities.
If you require repeat quantities for production, fleet, commercial or installation use, please contact us to discuss:
- Bulk pricing
- Scheduled orders
- Delivery rates
- Lead times
Custom Anderson Cable Requirements
If you have a custom requirement for this product or any of our other cable assemblies, speak to the Leads and Looms team.
We can discuss alternative cable assemblies, connector configurations and other custom requirements.
Call 01543 398 454, email sales@leadsandlooms.co.uk, or use the Contact Us page.
Delivery Information
Next working day delivery is available for orders placed before 1pm, subject to stock availability.
For bulk quantities or custom cable requirements, please contact us for applicable lead times and delivery information.
